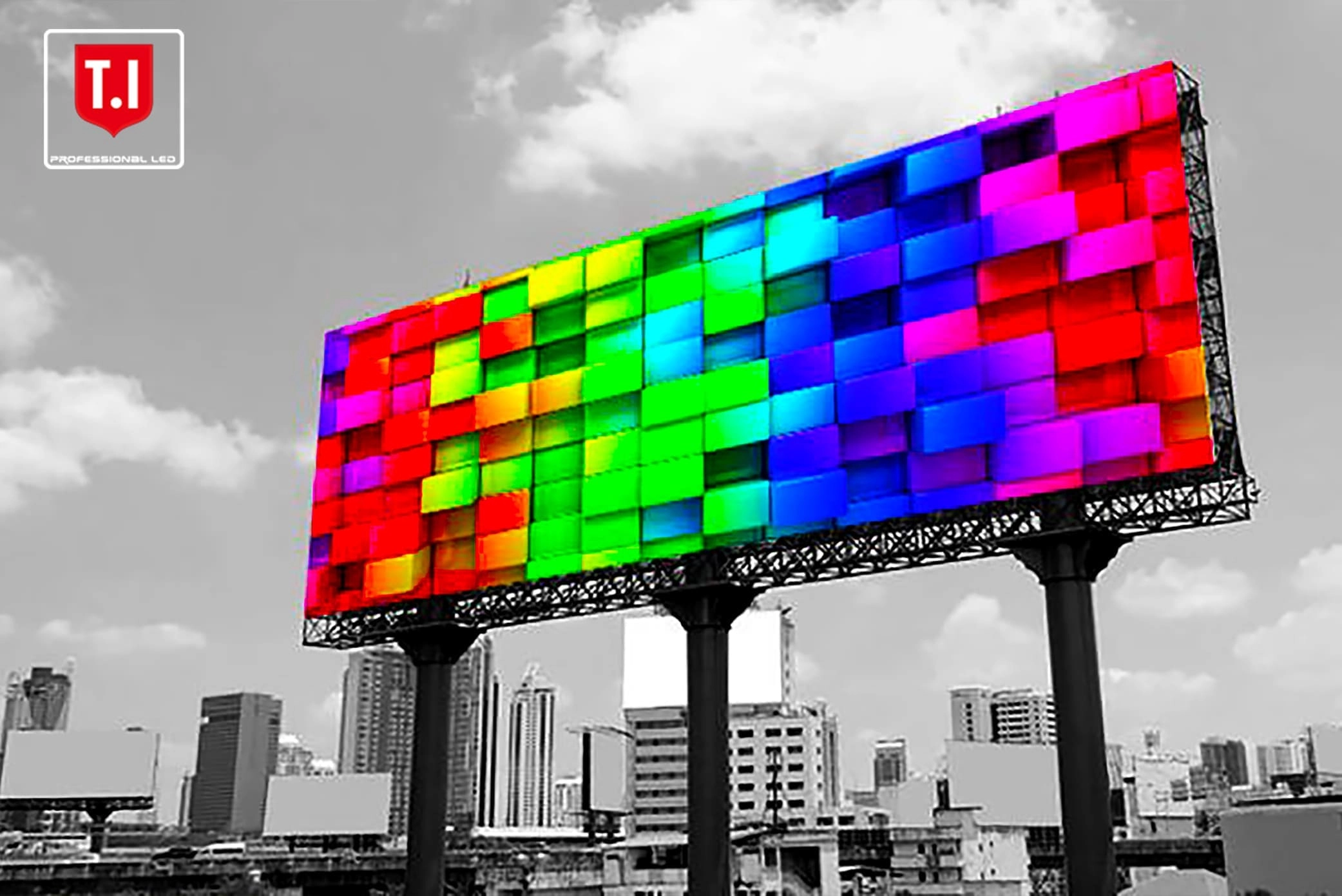

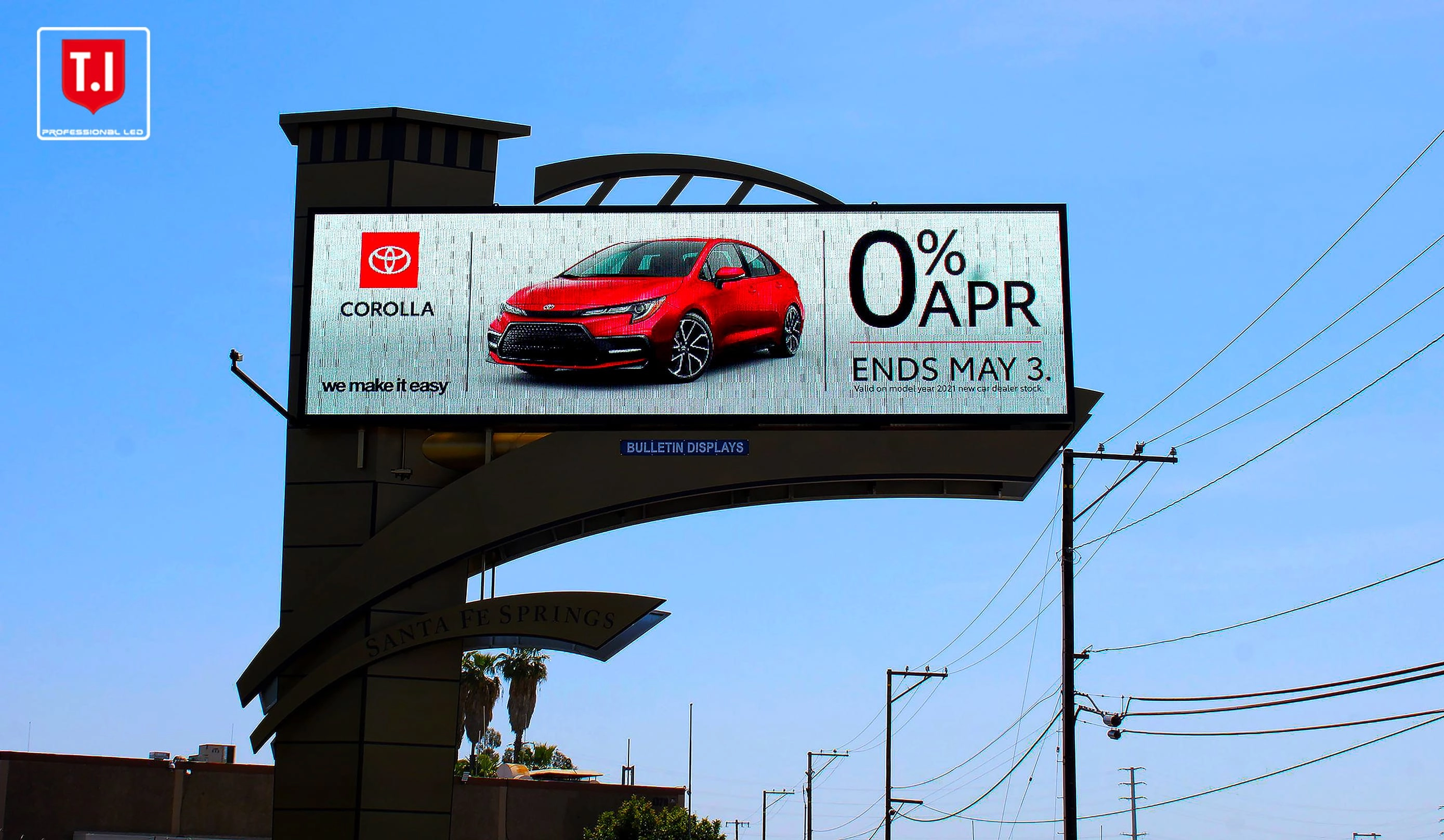

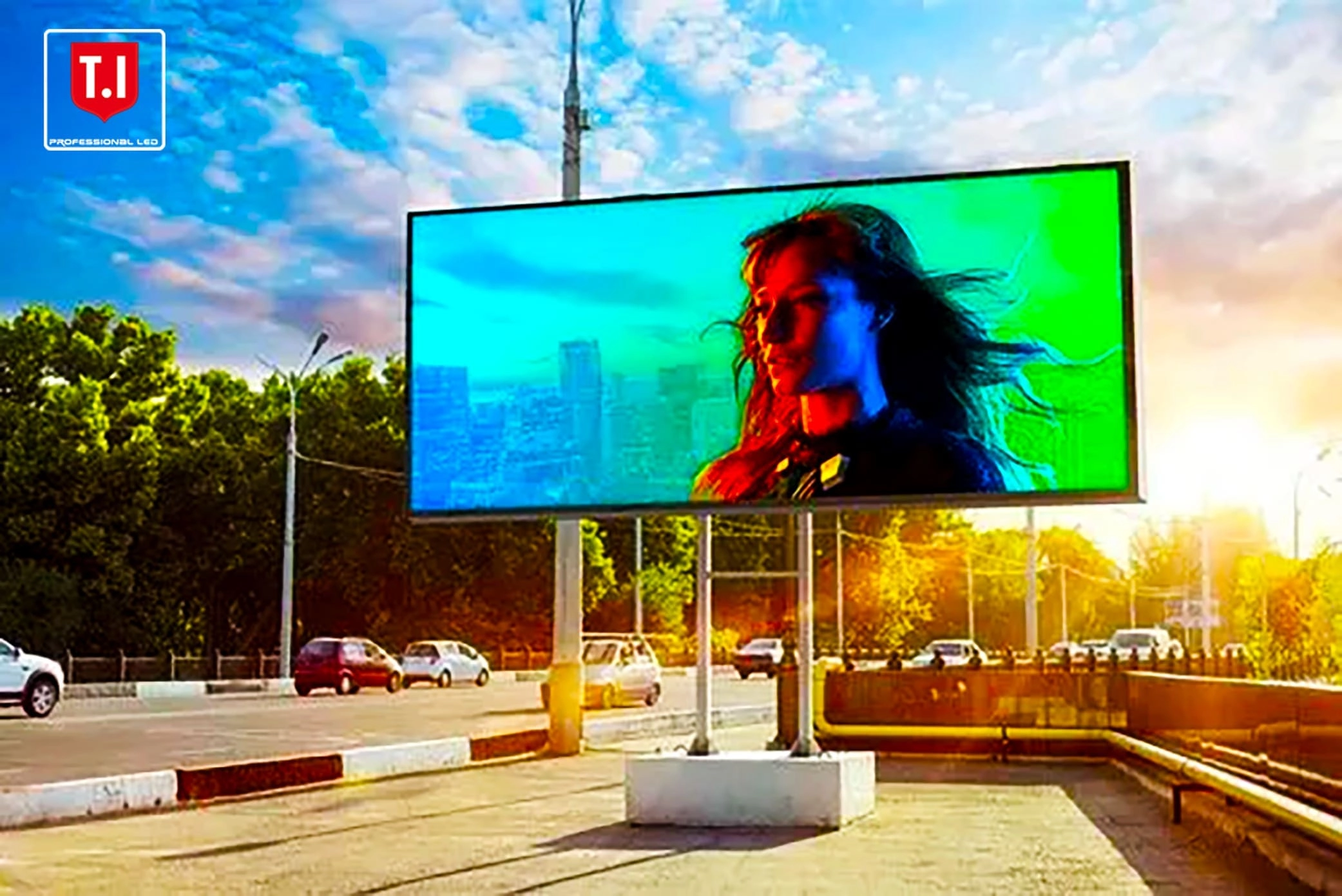

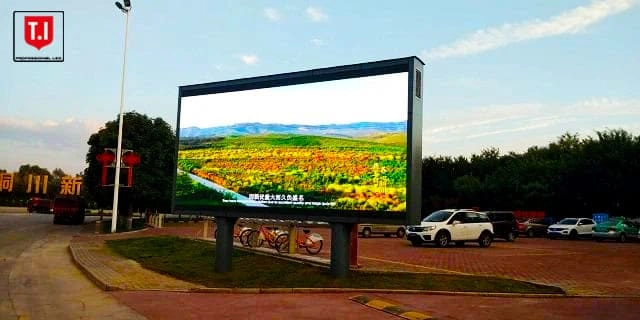

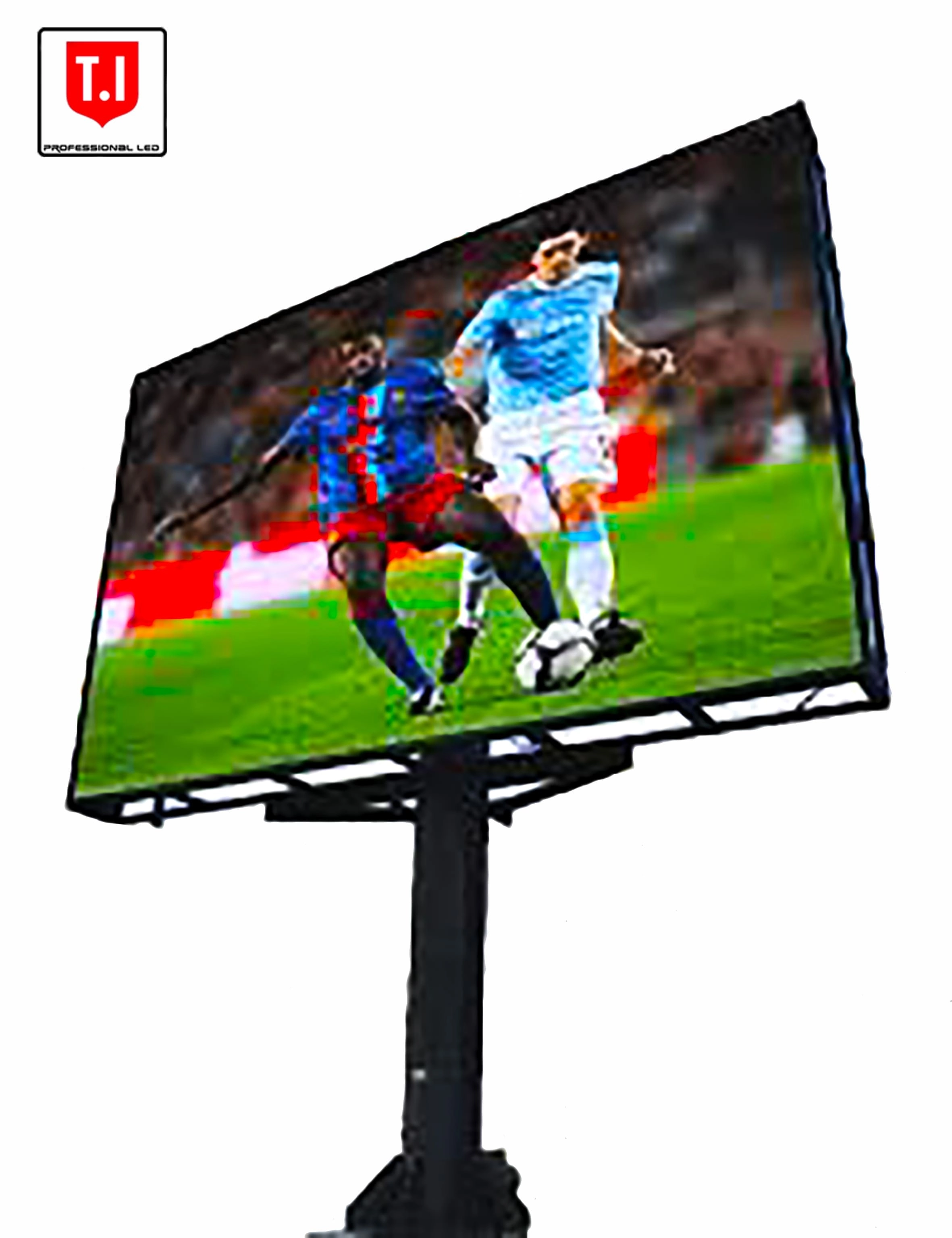

T.I Outdoor screen

Discover the ultimate outdoor screen experience with T.i Audio's Pro LED display. This cutting-edge product offers exceptional brightness and clarity, perfect for any outdoor event. Elevate your presentations or gatherings with reliable, high-quality visuals designed for optimal outdoor performance. Explore superior outdoor display solutions today.

Brand Name

T.I Pro Audio

Place of Original

Guangdong, China

Model

T.I Outdoor screen

Customized

Yes

MOQ

1

After-Sales Service and Warranty:

T.I has a professional and efficient after-sales service team, whose members have rich industry experience and technical knowledge, and can provide customers with timely and accurate technical support and solutions.

Personalized pre-sales and after-sales support

We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Product Detail

Outdoor Full Colour P3 Specification

Module Front Module Back

Module technical parameters

Serial Number	Project Name	Parameters And Indicators
Unit Module
1	LED packaging method	SMD 1415 surface mount three-in-one
2	Horizontal viewing angle	H≥160°
3	vertical viewing angle	V≥140°
4	Pixel composition	1R1G1B
5	point spacing	3mm
6	scanning method	1/16 Scan
7	Drive mode	Constant current drive
8	Module resolution	64×64 points
9	Module size	192mm×192mm×17mm
10	Module weight	325±5g
11	Mod type	Light driver in one
12	Module working voltage	4.2-5V
13	Module maximum current	6.6A
14	Module average power	17W
15	Maximum power of module	33W
full screen
1	Usage environment	outdoor
2	Protection level	IP65 (front)
3	white balance brightness	≥4500cd/m2
4	color temperature	3000-18000K
5	average power	448W/m2
6	Maximum power	895W/m2
7	Brightness uniformity	≥97%
8	Chroma Uniformity	±0.003Cx, within Cy
9	Pixel density (dots/square meter)	111111
10	Power supply	AC200-240V,50/60Hz
11	Leakage current to earth	≤3.5mA/m2
12	Working temperature	-20℃～+60℃ Supports up to -40°C by adding heating facilities
13	Working environment humidity	10%~80% no condensation
14	Storage environment temperature	-20℃～60℃
15	Storage environment humidity	10%~80% no condensation
16	frame change frequency	60Hz
17	Refresh frequency	≥1920/3840Hz
18	Best viewing distance	≥3m
19	Signal processing depth	65536
20	Grayscale/Color	281 trillion
21	Brightness adjustment software	Software 16-level adjustment/16-level automatic
22	control method	Display simultaneously with computer display
23	Effective communication distance without relay	The maximum transmission distance of unshielded twisted pair is 100 meters, multi-mode Optical fiber transmission distance up to 500 meters, single-mode fiber transmission Distance up to 15 km
24	computer operating system	Windows(XP、Vista)、Win7、Win8、Win10
25	video signal	VGA, DVI, RF, S-Video, RGBHV YUV, YC, COMPOSITION, etc.
26	mean time between failures	≥10000 hours
27	life	≥100000 hours
28	The entire screen pixel out-of-control rate	≤1/10000
29	Regional pixel out-of-control rate	≤3/10000
30	stability	Support 7*24H continuous work
31	Flame retardant (fireproof)	PCB’s flame retardant rating reaches UL94 V-0 level
32	Kit material	PC+fiber
33	Decay rate (3 years of service)	≤15%
