How Can Integrated Line Array and Subwoofer Systems Prevent Sound Delay in Large Venues?

Sound delay is one of the biggest technical challenges in large venues such as stadiums, arenas, outdoor festivals, and mega churches. When audiences hear echoes, phase smearing, or timing inconsistencies between main speakers and delay towers, speech intelligibility drops and music loses impact.

An integrated line array and subwoofer system, properly designed and tuned, is the most effective way to prevent these issues. Here’s how.

1. Understanding the Real Cause of Sound Delay

In large venues, delay problems are usually caused by:

Long distances between main PA and audience

Poor time alignment between main arrays and delay speakers

Phase mismatch between line arrays and subwoofers

Improper DSP configuration

Uncoordinated system components from different brands

Sound travels approximately 343 meters per second, meaning even small timing errors create audible echo or comb filtering in large-scale sound reinforcement systems.

An integrated system addresses these problems from the design stage.

2. Time Alignment Between Line Arrays and Subwoofers

In professional sound reinforcement, the crossover region (typically 60Hz–120Hz) is critical. If the subwoofer output arrives slightly earlier or later than the line array output, you get:

Weak bass

Uneven frequency response

“Hollow” or muddy sound

Reduced impact in large concert environments

How Integration Solves This

An integrated system ensures:

Matched acoustic centers between tops and subs

DSP-based time alignment

Phase optimization in the crossover range

Preset-based tuning designed specifically for the system

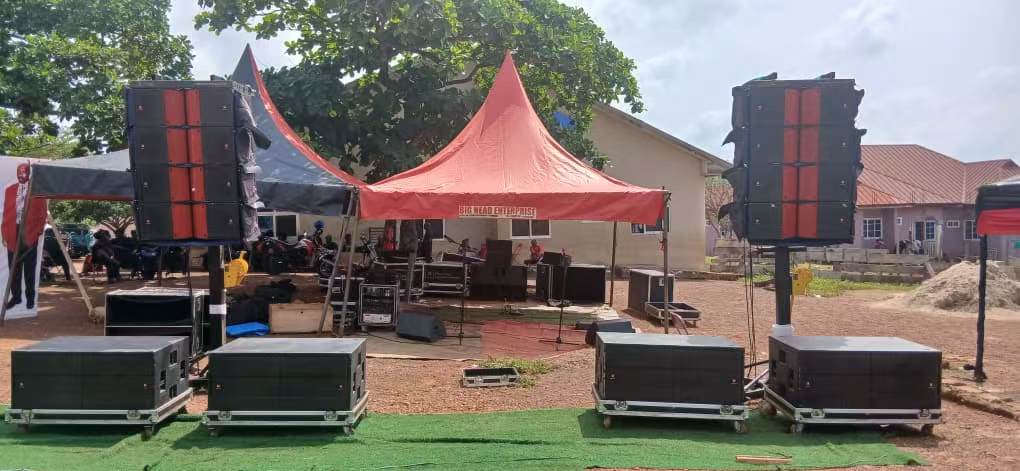

For example, systems like the Pro-2123 dual 12-inch 3-way line array paired with matched high-output subwoofers are engineered to work as a single acoustic unit — not separate components forced together.

3. Controlled Dispersion Reduces Reflected Delay

Large venues often have reflective surfaces:

Stadium walls

Arena ceilings

Concrete structures

Outdoor ground reflections

Line array systems provide controlled vertical dispersion, which:

Reduces unwanted ceiling reflections

Minimizes ground bounce

Focuses energy toward the audience

Improves direct-to-reflected sound ratio

The higher the ratio of direct sound to reflected sound, the less perceived delay or echo the audience hears.

4. Delay Towers and System Zoning

In stadium-scale applications, even the most powerful long-throw line array cannot cover extreme distances alone.

This is where delay towers and zoned sound systems come in.

Proper Integration Includes:

Precise delay calculations (milliseconds per meter)

DSP-controlled delay speakers

Consistent SPL matching between zones

Phase coherence across coverage areas

When line arrays, subwoofers, and delay systems are integrated under a unified control processor, the audience hears synchronized sound — no echo, no slapback, no confusion.

5. Cardioid and End-Fire Subwoofer Arrays

Low frequencies travel in all directions if not controlled. This can cause:

Rear-stage bass buildup

Low-frequency reflections

Timing inconsistencies

Integrated subwoofer design includes:

Cardioid subwoofer configurations

End-fire sub arrays

Directional bass control

This reduces unwanted rear energy and improves low-frequency timing consistency across the venue.

6. DSP System Control: The Brain of Integration

Modern large-scale PA systems rely on advanced DSP processing for:

Crossover management

Time alignment

Phase correction

Parametric EQ

Limiter protection

Zone management

When the line array and subwoofer system are designed together, DSP presets are optimized for that exact combination — dramatically reducing tuning time and preventing timing errors.

7. Why “Mix-and-Match” Systems Often Cause Delay Problems

Many large venues experience sound delay issues because:

Tops and subs are from different brands

Amplifiers are mismatched

No unified acoustic design

No prediction modeling before installation

An integrated solution avoids these risks by ensuring:

Mechanical compatibility

Electrical matching

Acoustic modeling before deployment

Scalable system design

8. Real-World Applications

Integrated line array and subwoofer systems are essential for:

Outdoor concerts and music festivals

Stadium sports events

Arena live shows

Large church gatherings

Government and public ceremonies

In these environments, even a 10–20 millisecond misalignment can be clearly audible. Proper system integration prevents that.

9. The Role of Professional System Design

A professional one-stop solution provider like T.I International ensures:

Complete acoustic system design

Line array + subwoofer matching

DSP programming

Rigging safety planning

On-site tuning support

With over 16 years of experience and installations in more than 100 countries, T.I delivers professional large-venue audio systems engineered for consistent coverage, high SPL, and precise time alignment.

Conclusion

Integrated line array and subwoofer systems prevent sound delay in large venues by:

✔ Time-aligning tops and subs
✔ Controlling dispersion and reflections
✔ Using DSP-based delay management
✔ Designing directional subwoofer arrays
✔ Implementing properly calculated delay towers
✔ Engineering the system as a unified acoustic solution

The result is:

Clear speech intelligibility

Tight, powerful bass

Even coverage across large audiences

A professional listening experience without echo or phase issues

For stadiums, arenas, and large-scale outdoor events, integration isn’t optional — it’s essential.
