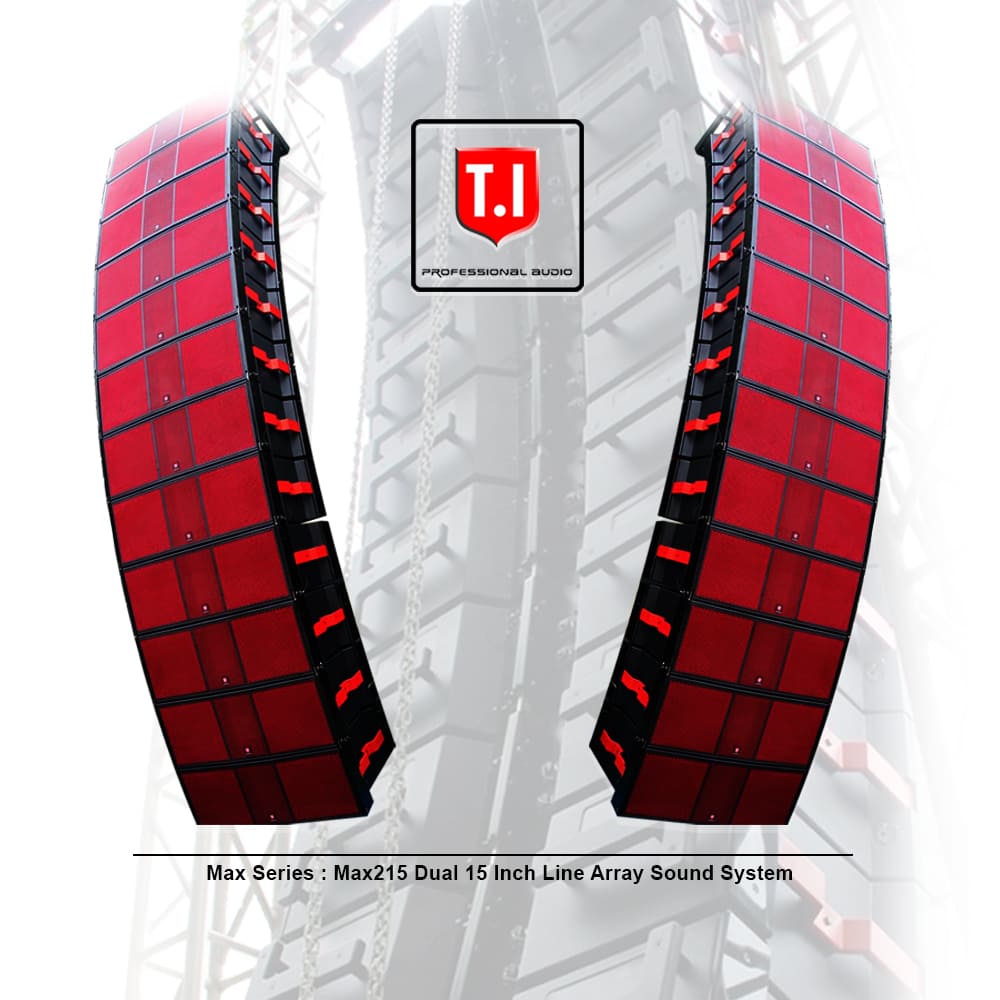

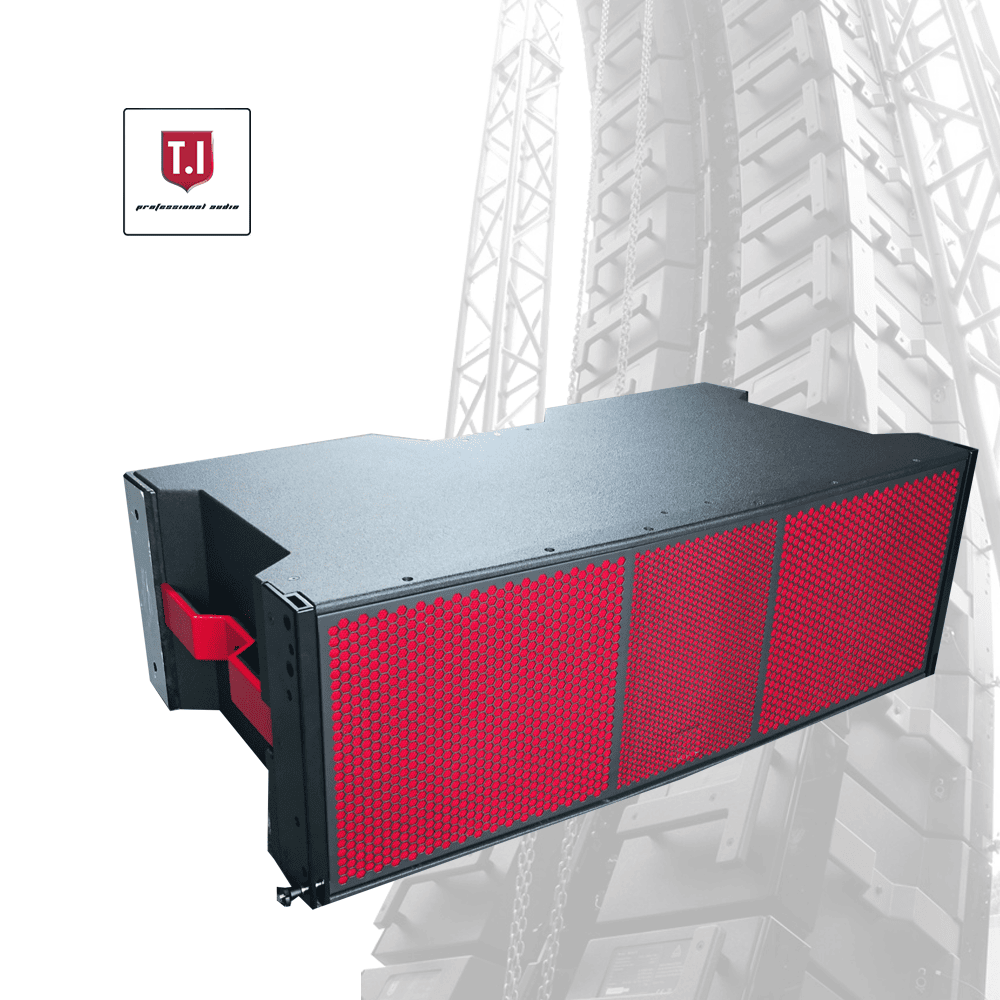

MAX215 Dual 15 Inch Line Array—Engineered for Real Concert Power

The T.I MAX215 Dual 15" Line Array Speaker is designed for large-scale concerts, outdoor festivals, stadium shows, and any professional touring PA system requiring extreme SPL output, long-throw projection, and uncompromising clarity. With a 3-way configuration, full neodymium drivers, and PCP cabinet protection, the MAX215 stands among the most powerful long-throw line array systems in its class.

Below is a detailed technical breakdown—critical for engineers, integrators, and professional rental companies evaluating high-performance concert PA equipment.

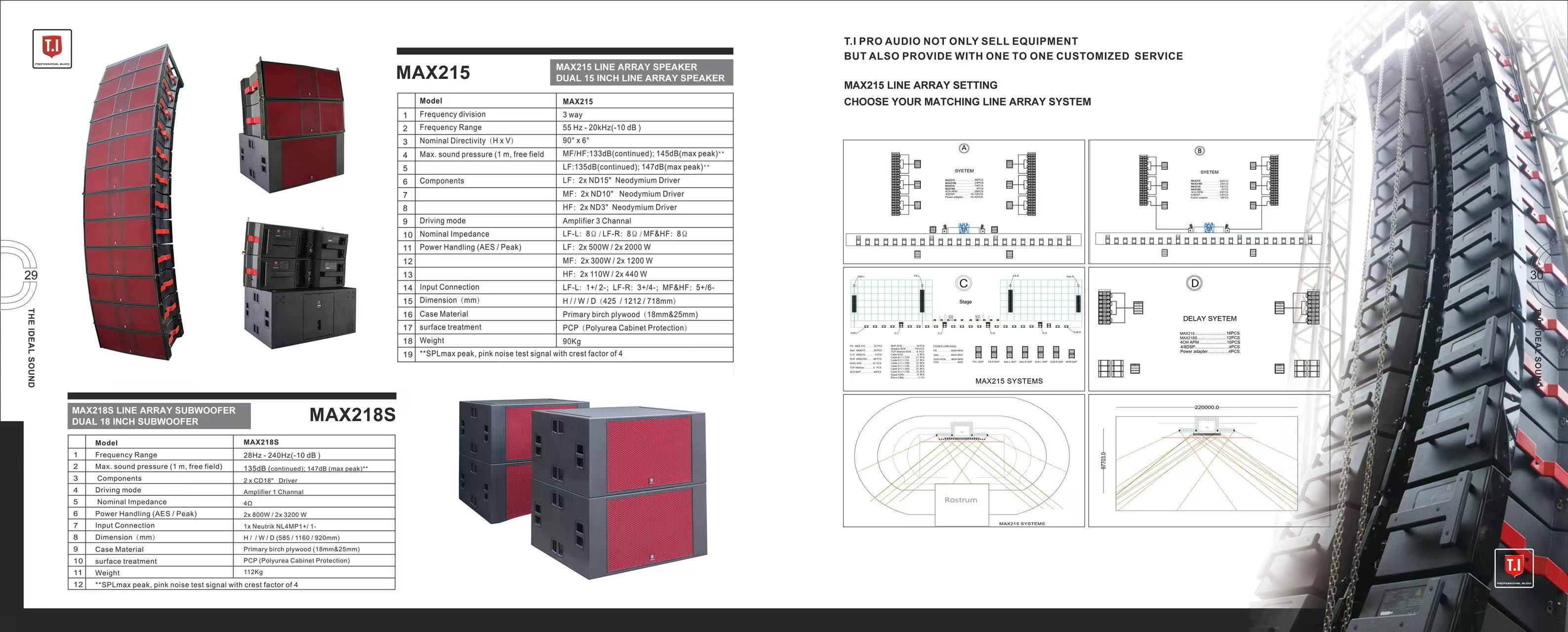

1. Technical Specifications of MAX215 Line Array
MAX215 – Dual 15 Inch 3-Way Line Array Speaker
Core Parameters

Model: MAX215

Design: Dual 15", 3-way long-throw line array

Frequency Range: 55 Hz – 20 kHz (-10 dB)

Nominal Directivity: 90° (H) × 6° (V)

Total Max SPL:

MF/HF: 145 dB (peak)

LF: 147 dB (peak)

Driving Mode: 3-channel amplifier

Nominal Impedance:

LF-L: 8Ω; LF-R: 8Ω; MF&HF: 8Ω

Neodymium Components

LF: 2 × ND15" Neodymium Drivers

MF: 2 × ND10" Neodymium Drivers

HF: 2 × ND3" Neodymium Drivers

Power Handling (AES / Peak)

LF: 2 × 500 W / 2 × 2000 W

MF: 2 × 300 W / 2 × 1200 W

HF: 2 × 110 W / 2 × 440 W

Construction

Cabinet Material: 18mm & 25mm primary birch plywood

Surface Treatment: PCP (Polyurea Cabinet Protection)

Dimensions: 425 × 1212 × 718 mm

Weight: 90 kg

Input Connection:

LF-L: 1+/2-; LF-R: 3+/4-; MF&HF: 5+/6-

This configuration makes the MAX215 one of the most powerful dual 15 inch professional line array speakers available for outdoor long-throw applications.

2. MAX218S

Dual 18’’ Line Array Subwoofer

—Deep, Clean, Stadium-Level Low Frequencies

To match the MAX215’s massive output, the system pairs perfectly with the MAX218S Dual 18" Subwoofer.

MAX218S Technical Specifications

Model: MAX218S

Frequency Range: 28 – 240 Hz (-10 dB)

Max SPL: 147 dB (peak)

Drivers: 2 × CD18" high-power woofers

Impedance: 4Ω

Power Handling: 2 × 800 W / 2 × 3200 W

Amplifier: 1 channel

Cabinet: Birch plywood with PCP coating

Dimensions: 585 × 1160 × 920 mm

Weight: 112 kg

Input: Neutrik NL4MP (1+/1-)

With 28 Hz ultra-low extension, MAX218S provides earthquake-level bass for:

EDM festivals

Stadium shows

Church crusades

Outdoor concerts

Touring rental companies

3. Why Engineers Choose the MAX215 Line Array System

✔ 3-Way High Definition Clarity

Separate LF / MF / HF drivers deliver a balanced and clean sound stage, ideal for professional front-of-house mixes.

✔ Massive Throw Distance

The 90° × 6° dispersion makes MAX215 a true long-throw concert line array, suitable for:

10,000–50,000-capacity concerts

Stadium and arena sound

Festival main stages

Church crusades and revival events

✔ High SPL for Large Venues

Peak 147 dB output ensures the MAX215 covers large open fields without distortion.

✔ Touring-Grade Build Quality

PCP Polyurea finish ensures extreme durability under:

High humidity

Outdoor rain exposure

Heat & UV

Daily trucking & loading

✔ Neodymium Drivers (Lightweight + High Efficiency)

Ensures higher sensitivity, lower overall cabinet weight, and better long-term performance.

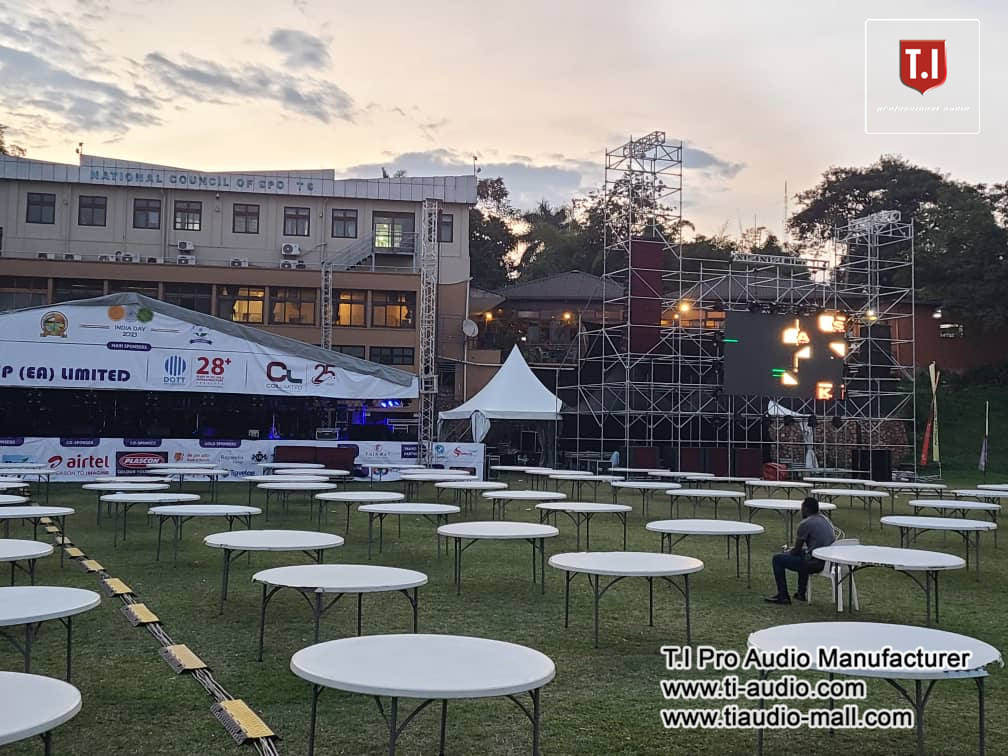

4. Real-World Applications

The MAX215 + MAX218S system is widely used in over 100 countries worldwide, including:

Outdoor concerts

Church crusades (Africa, USA, Caribbean)

Stadium and arena installations

Festival touring

Rental companies

Government outdoor events

City ceremonies

Hotel ballrooms

Convention centers

Theme parks and tourist attractions

5. T.I PRO AUDIO: Beyond Products—We Provide Fully Customized One-to-One Service

T.I Pro Audio is not only a manufacturer.
We are a full solution provider.

✔ OEM & ODM Manufacturing

Build your brand, your casing, your logo, your sound.

✔ One-to-One Customized Service

We help design your entire audio system based on your venue.

✔ Complete System Integration

T.I factory lines include:

Sound systems

Lighting systems

LED screens

Stage truss

Stage effects

Stage trucks

Dance floors

Tents for large events

Power generators

Bleachers

Full touring system integration

One supplier = No compatibility issues.
Perfect for US, Europe, Middle East, Africa, and Asia events.

6. “Make Your Shows No.1”—Our Promise

T.I Audio is known as:

Gold Medal Supplier for the Qatar World Cup

99% of worldwide audio engineers recommend T.I

For every 10 foreigners who visit China, 7 purchase T.I systems

Used in large outdoor shows across 100+ countries

These are not slogans—they come from real global usage, real installations, and real engineering feedback.

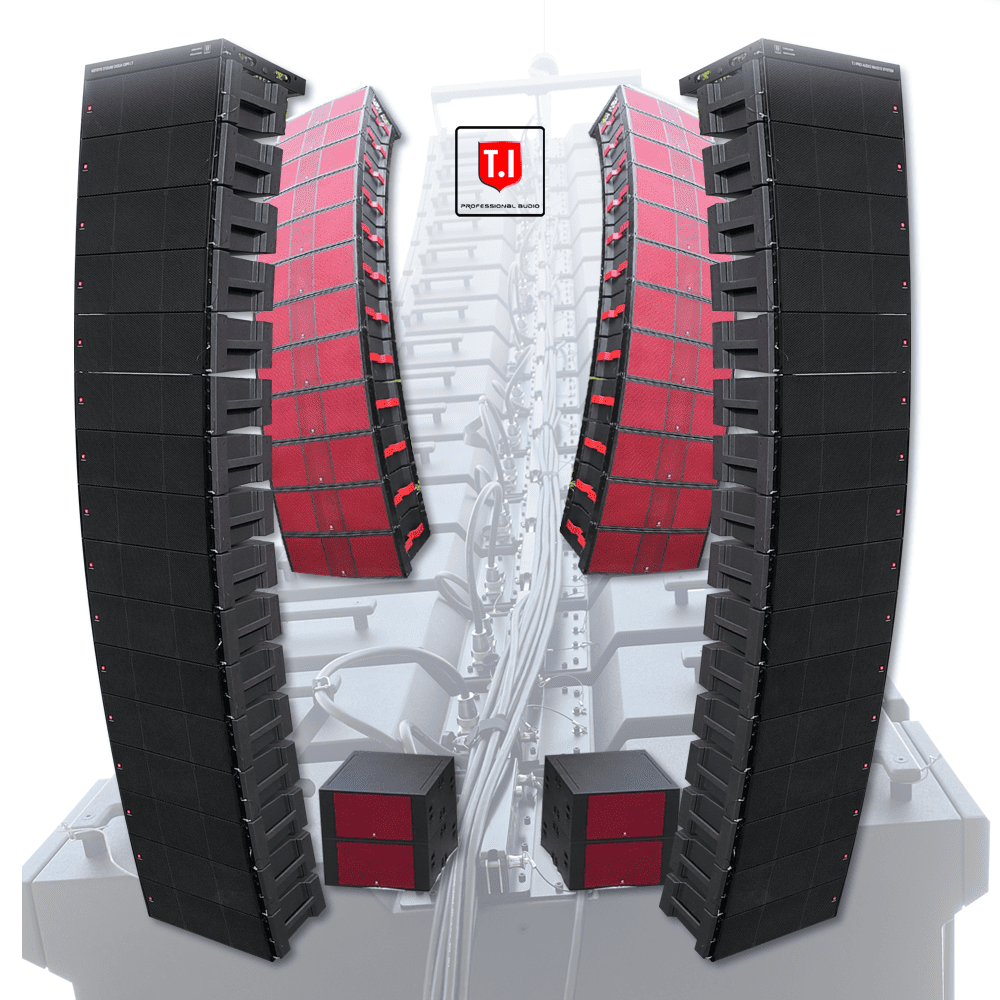

7. Choose Your Matching MAX215 Line Array System

Whether you need:

8 tops + 8 subs for church

16 tops + 12 subs for concerts

24 tops + 24 subs for stadiums

36–48 tops for mega festivals

T.I engineers will customize the full configuration for you.

Conclusion

The MAX215 Dual 15 Inch Line Array Speaker—paired with the MAX218S Dual 18 Inch Subwoofer—offers extreme SPL, long-throw precision, industry-leading durability, and full system flexibility. Combined with T.I’s OEM/ODM production capability and complete one-stop service, it is the ultimate choice for large-scale professional sound reinforcement.
